Super Bright Stable Series/Dual-beam
Introduce:

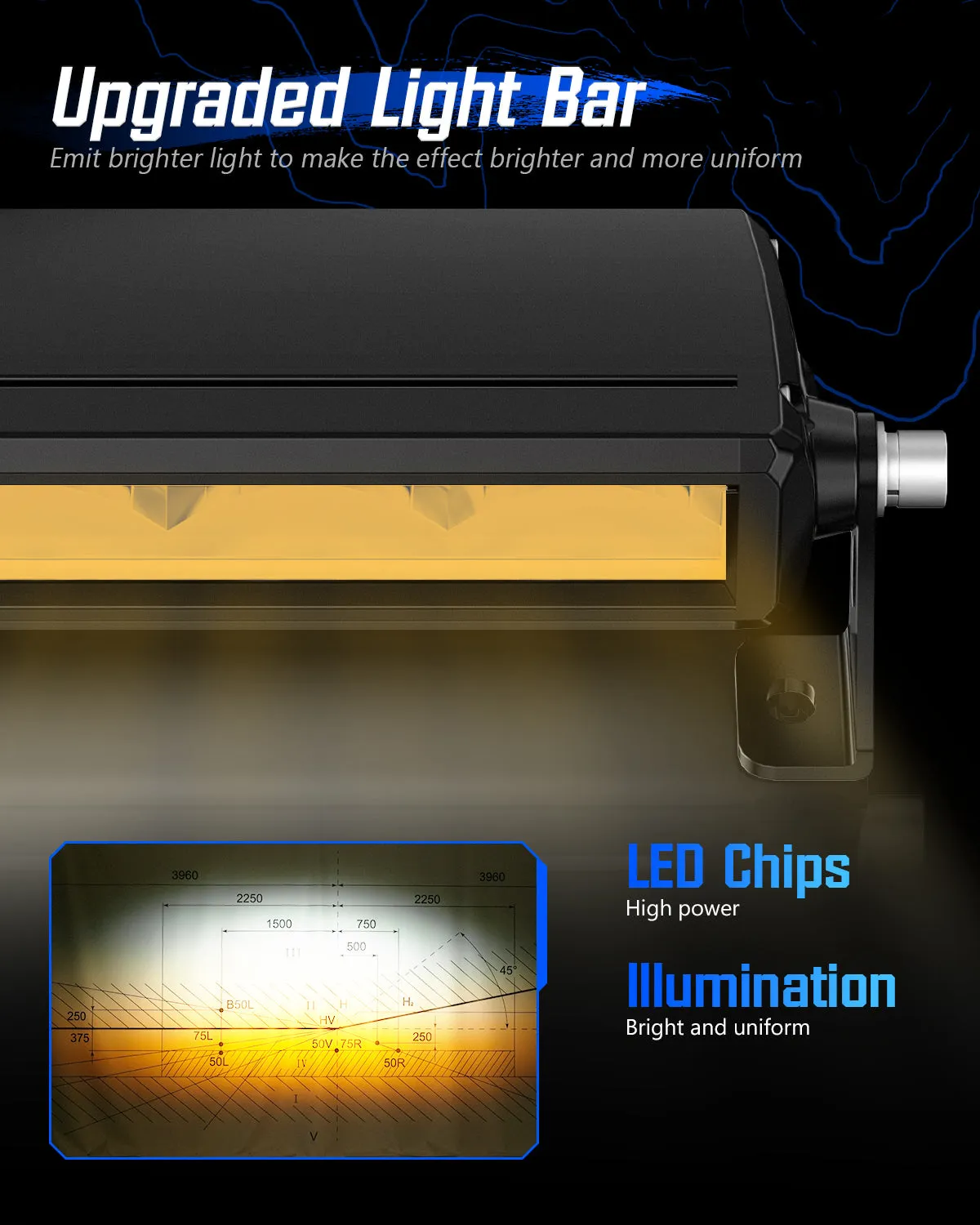

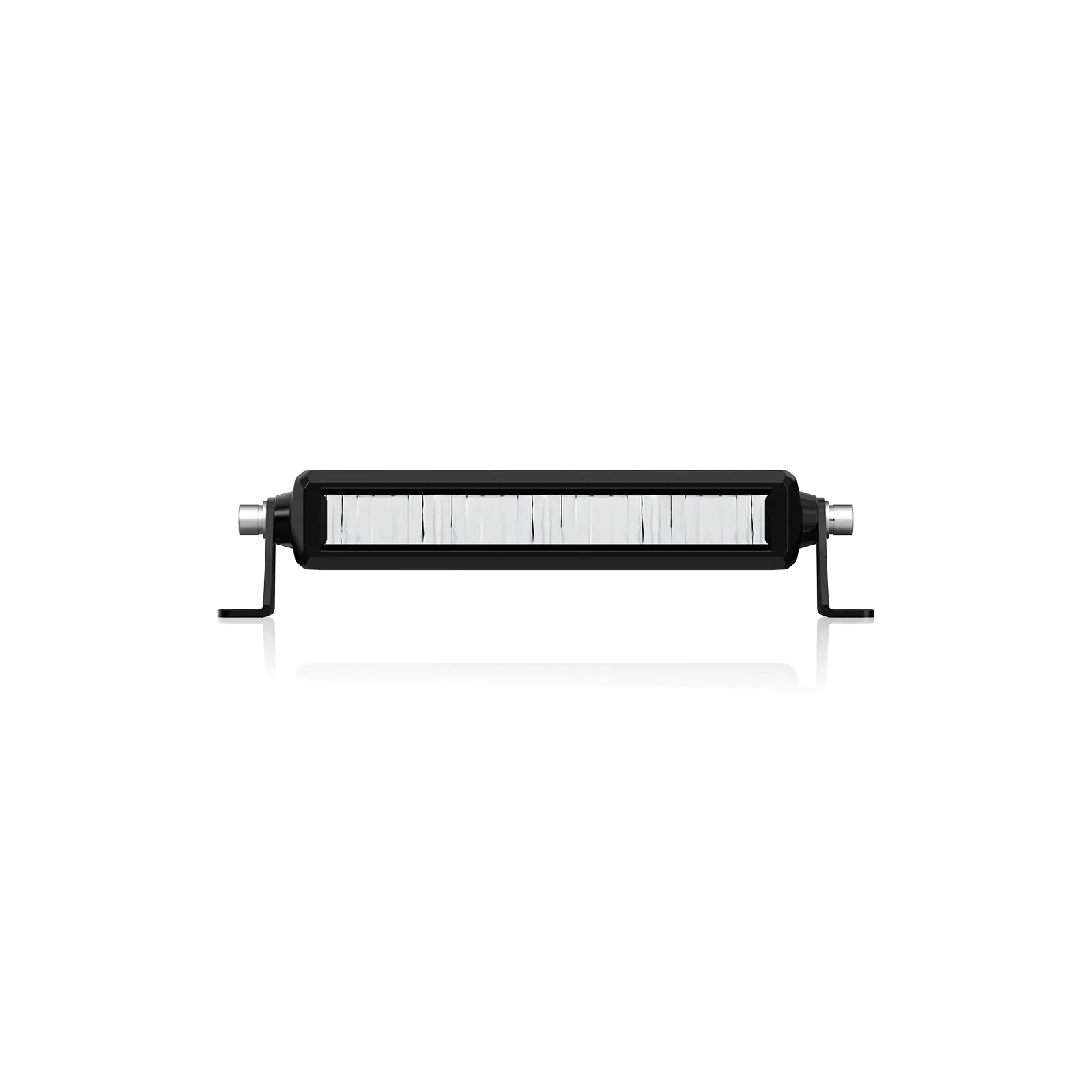

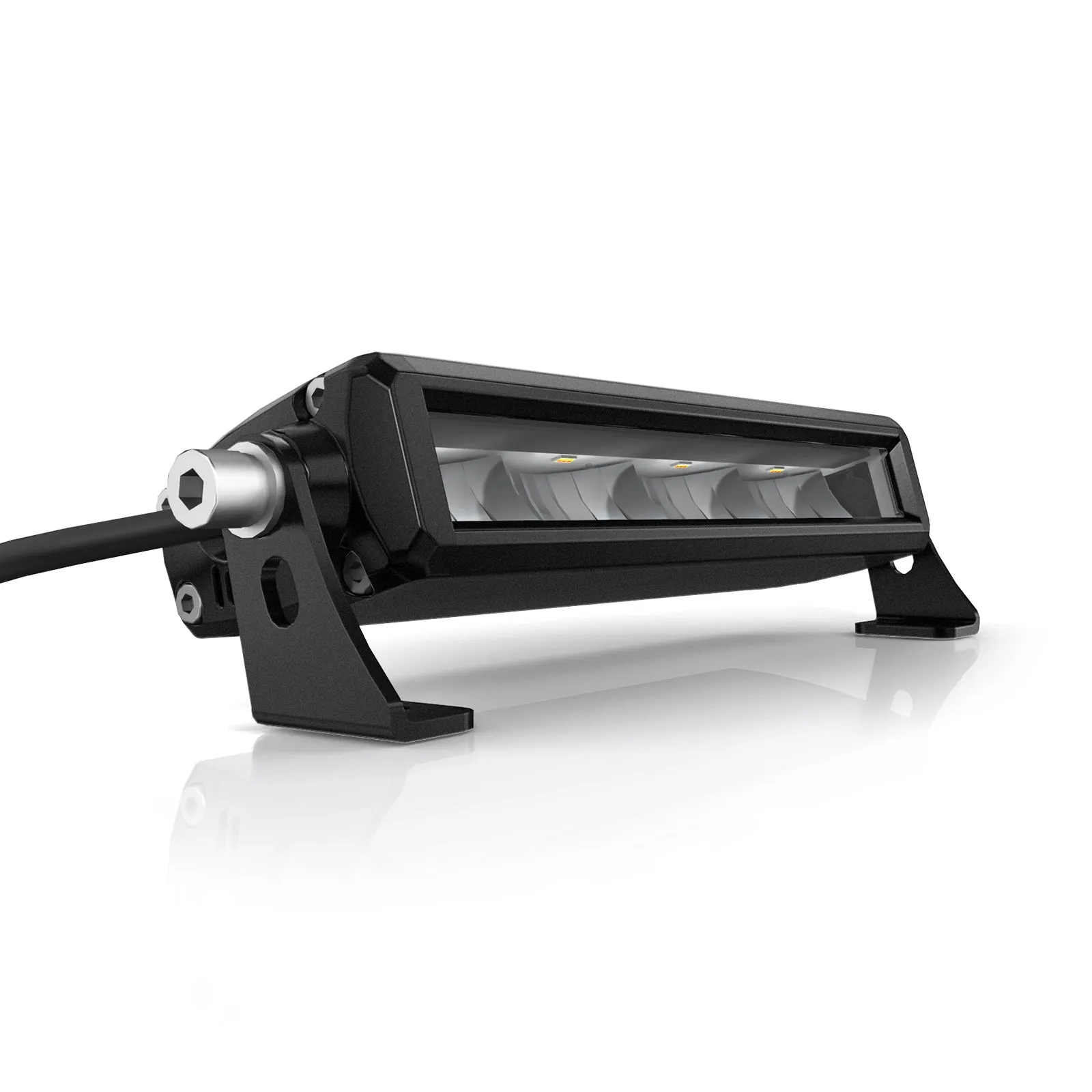

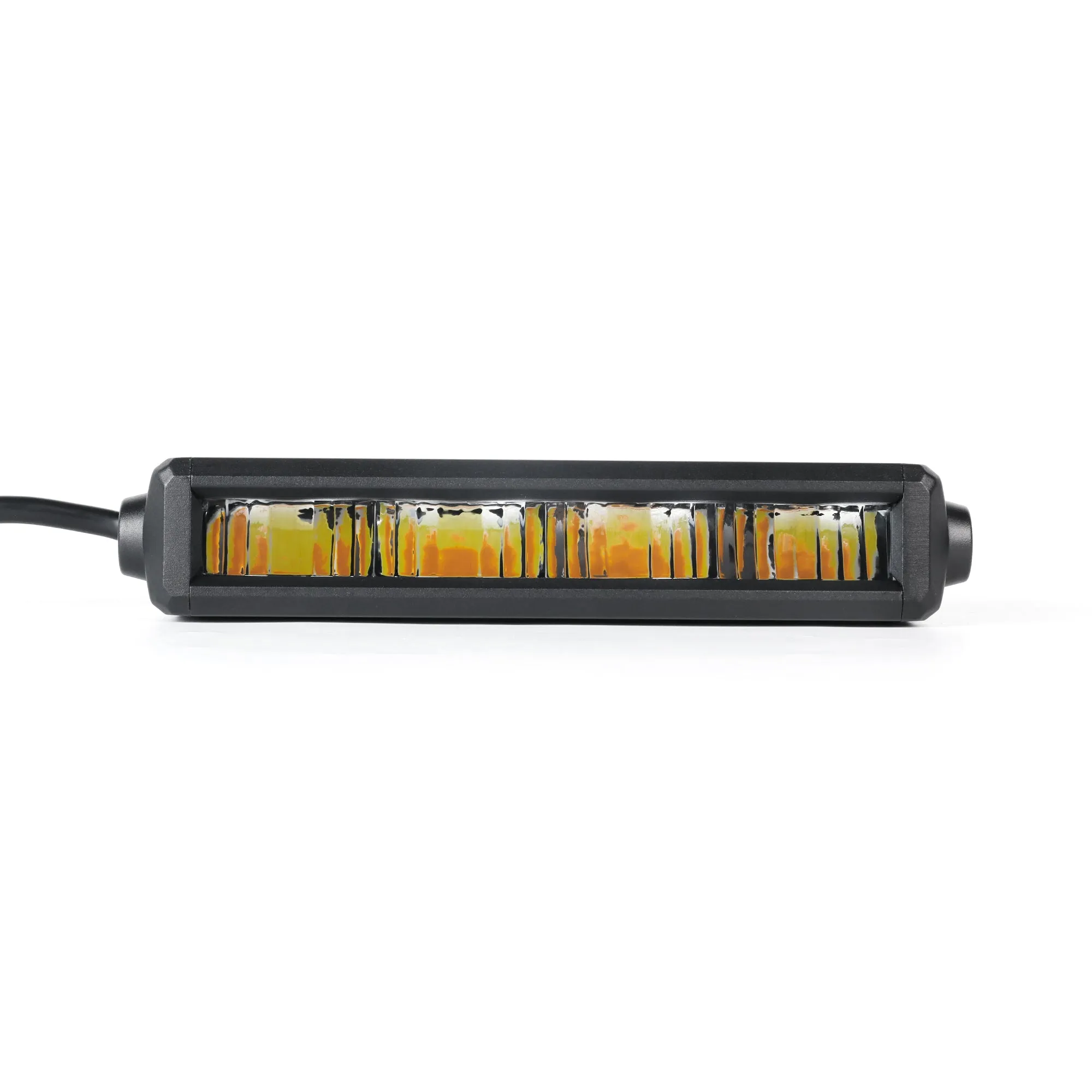

Novsight LED light bar uses advanced optical technology (semi-convex mirror) with white and amber dual beams. You can switch the color as you like. The light is effectively focused and projected to near and far areas, providing a wider angle and farther range of vision. IP68 waterproof grade, reliable service in all kinds of bad rain and snow weather, it is a must-have professional light bar for adventurers. Comes with a stable mounting bracket to make the light steady, not easy to shake and damage.
Available sizes: 8.8 Inch, 12.5 Inch, 19.7 Inch, 30.5 Inch, 37.8 Inch, 48.7 Inch

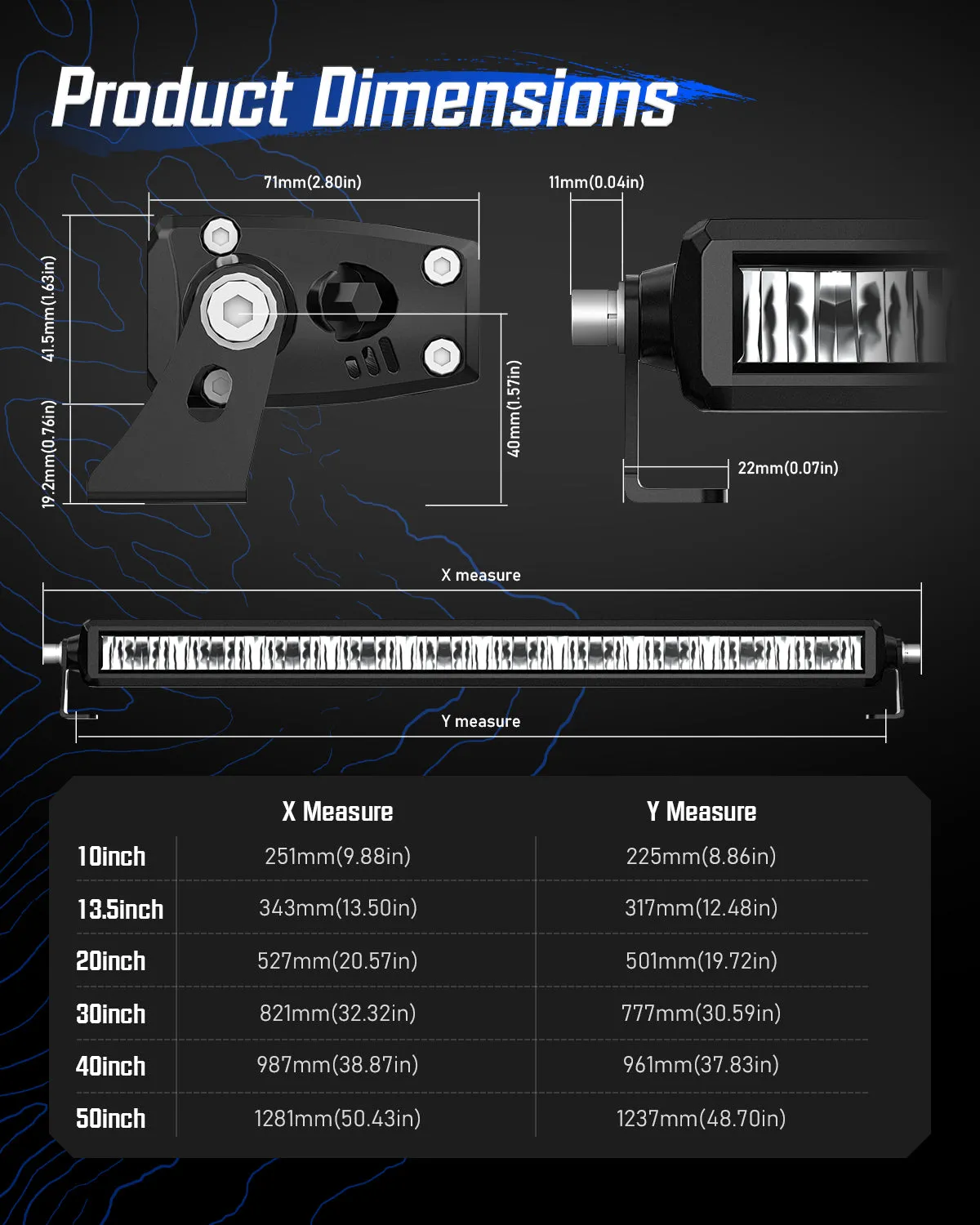

Compilations of different size LED light bar
|
Length |
Size (Inch） |
BAR Light Source |
Output Power |
|

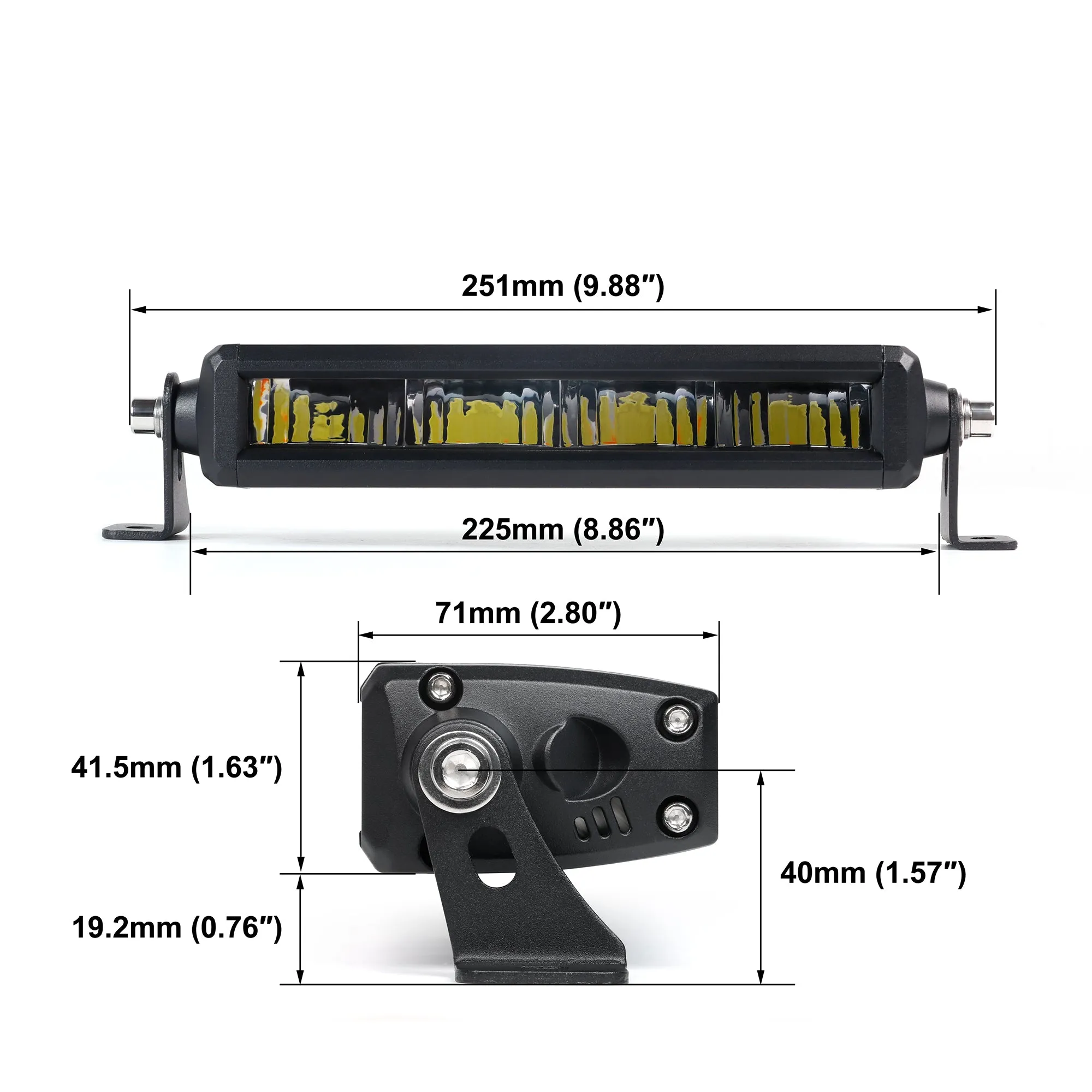

8.8 Inch |
8.86*2.80*1.63" |
4pcs 30W 3570 LEDs |
60W White 60W Amber |
| 12.5 Inch | 12.48*2.80*1.63" | 6pcs 30W 3570 LEDs |
90W White 90W Amber |
|

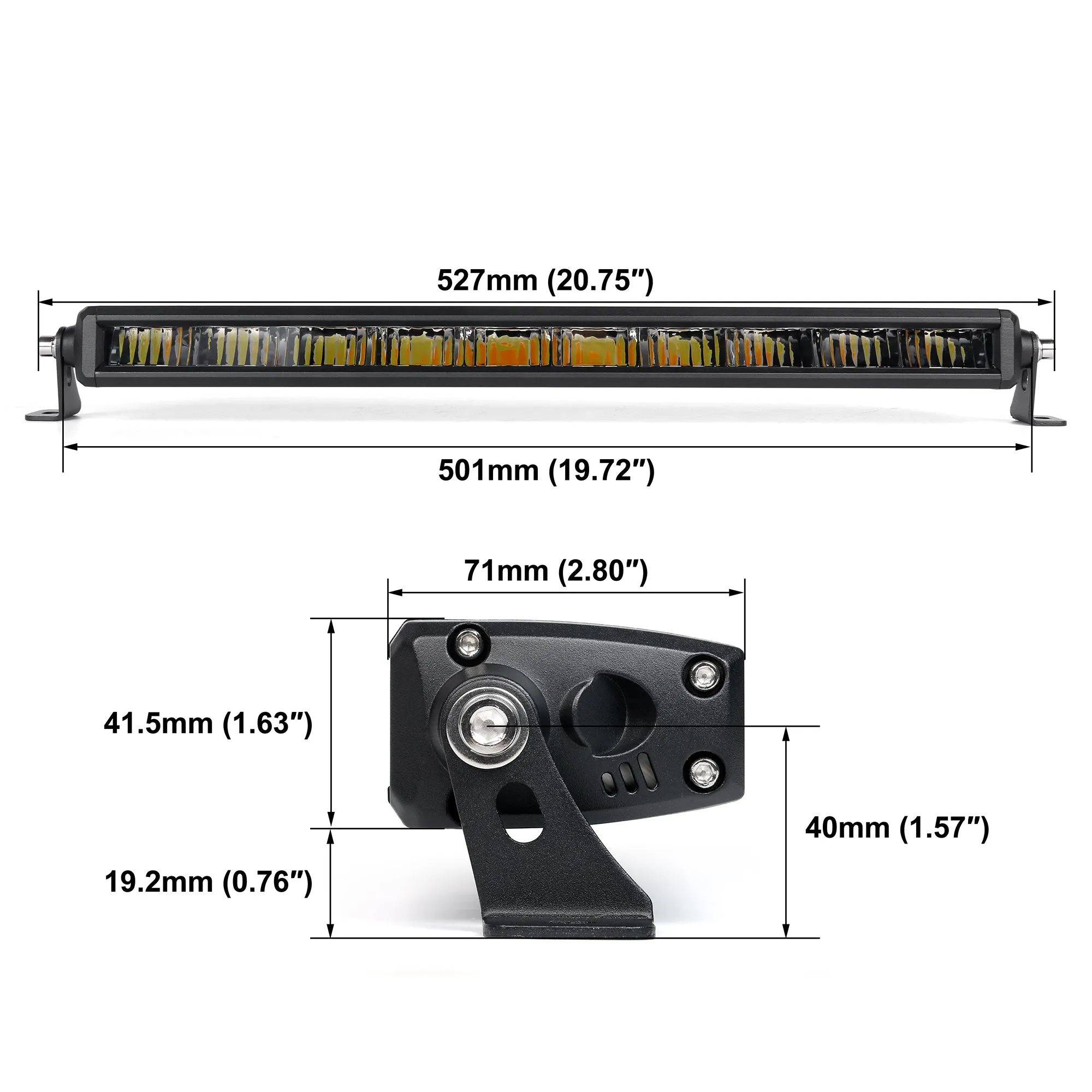

19.7 Inch |
19.72*2.80*1.63" |
10pcs 30W 3570 LEDs |
150W White 150W Amber |
|

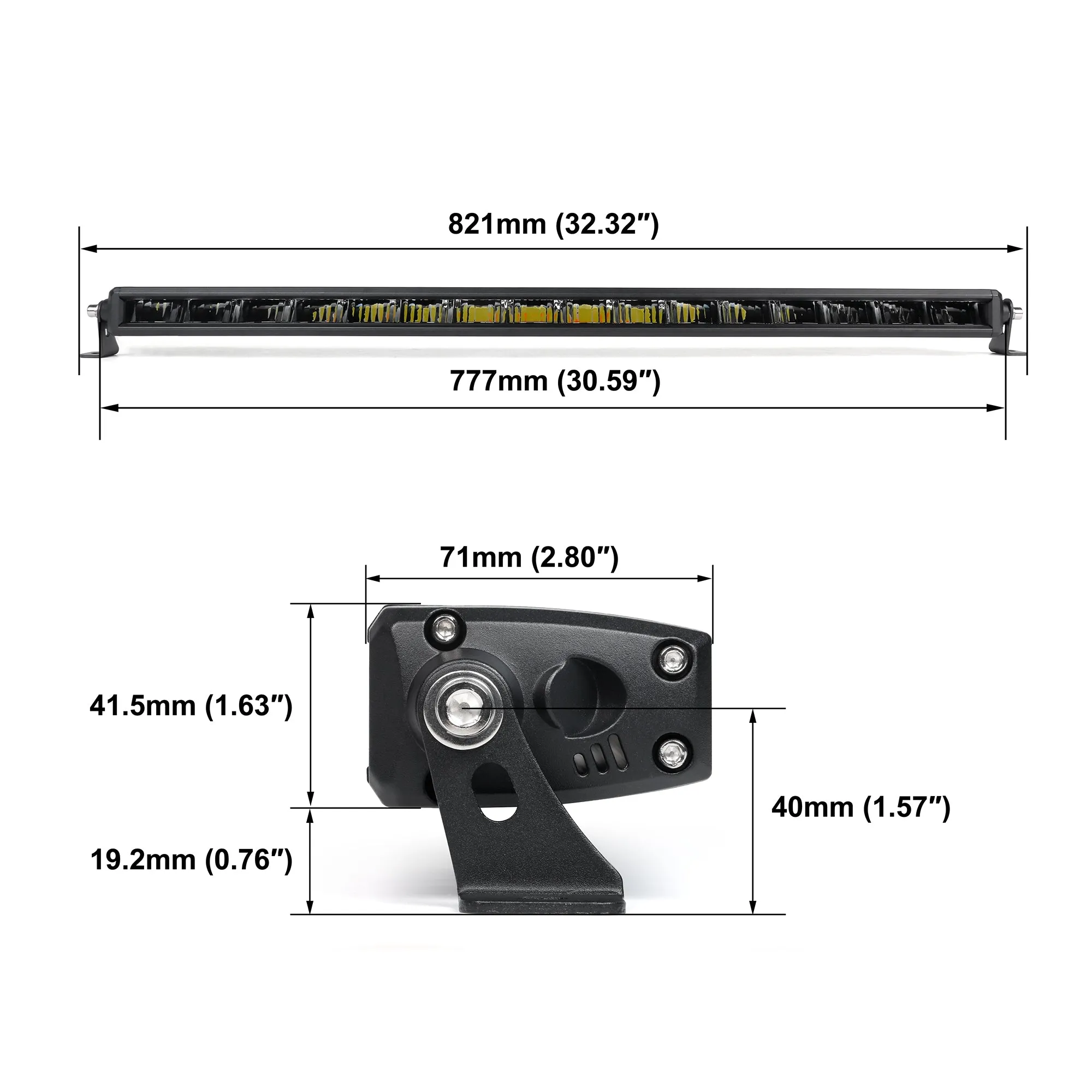

30.5 Inch |
30.59*2.80*1.63" |
16pcs 30W 3570 LEDs |
240W White 240W Amber |
|

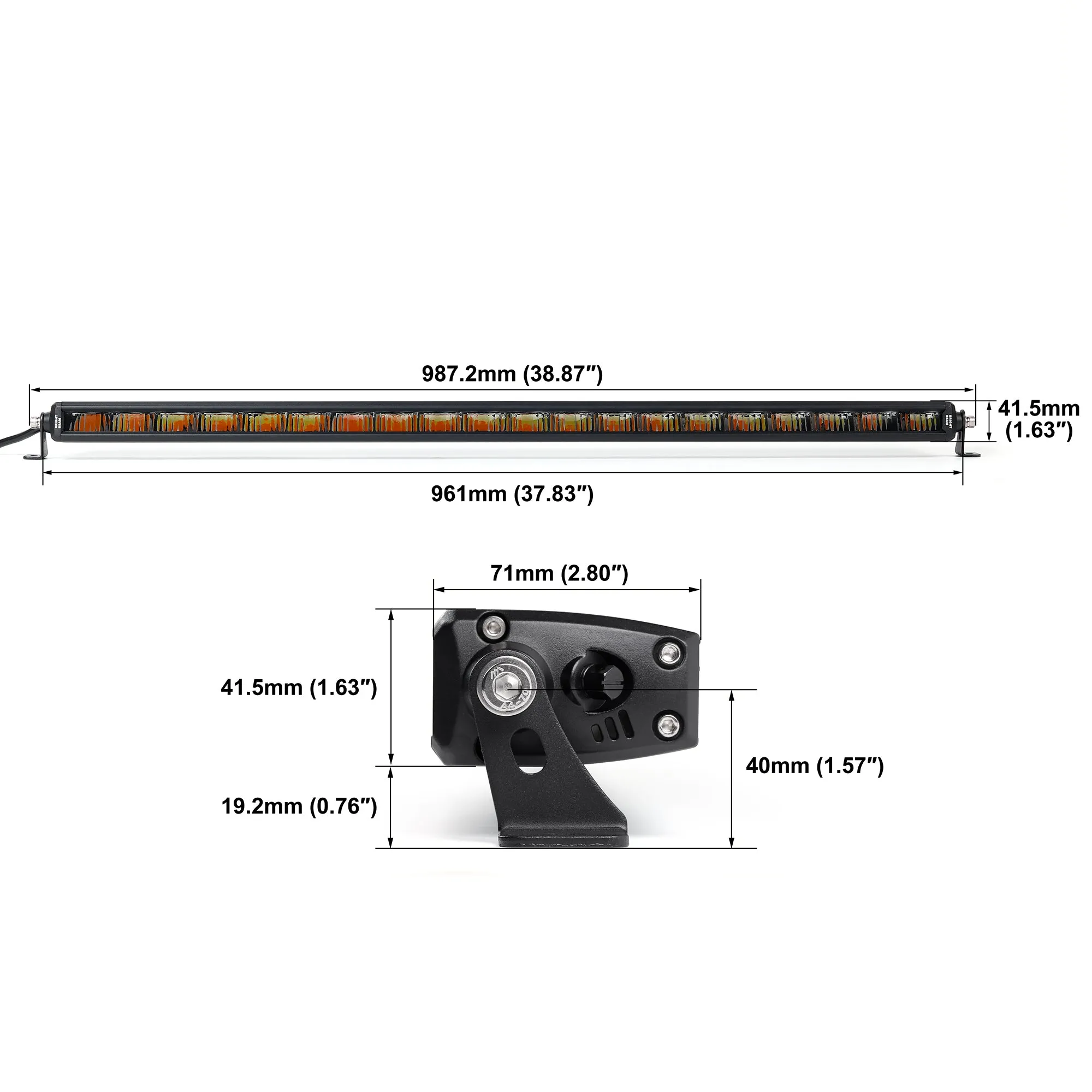

37.8 Inch |
37.83*2.80*1.63" |
20pcs 30W 3570 LEDs |
300W White 300W Amber |
|

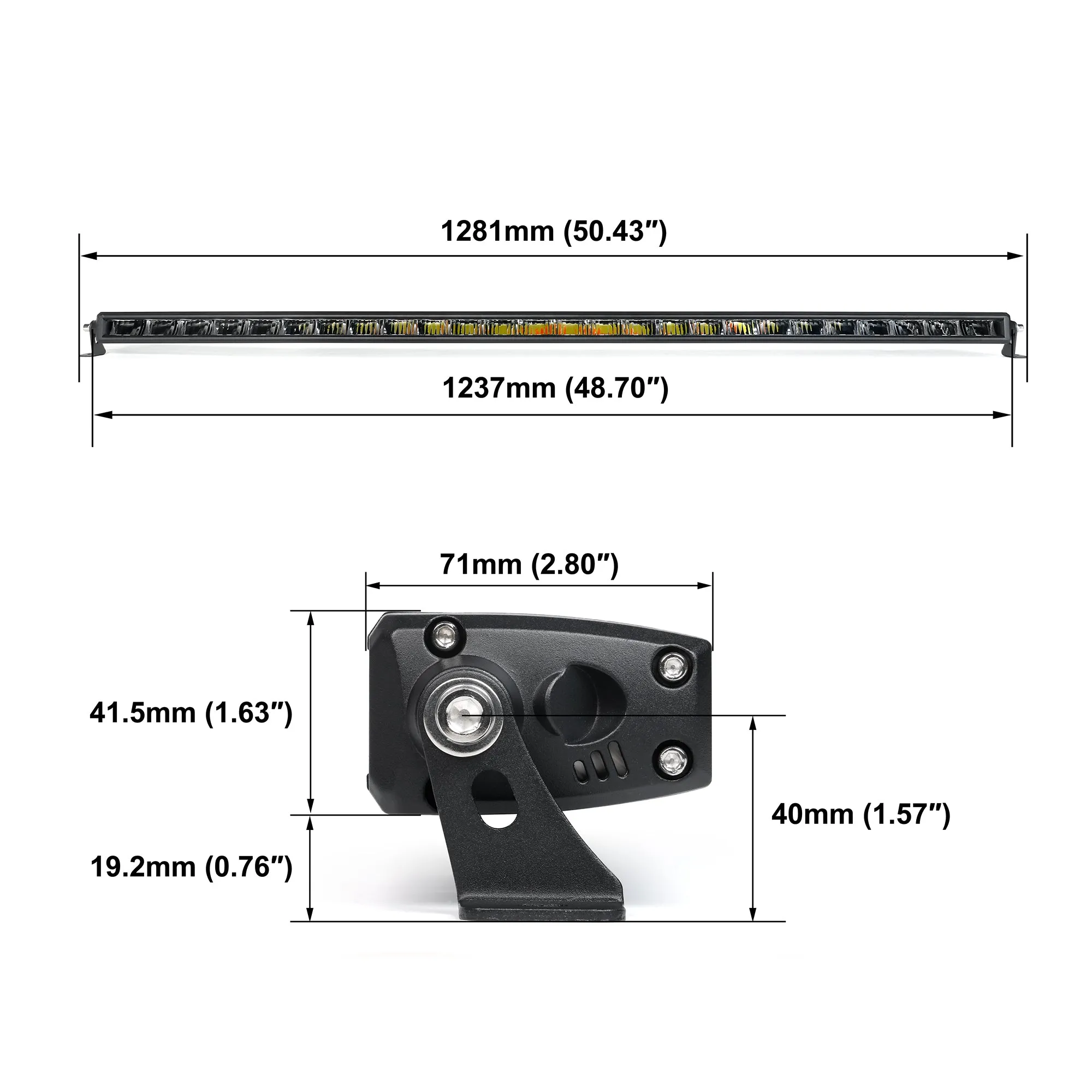

48.7 Inch |
48.70*2.80*1.63" |
26pcs 30W 3570 LEDs |
390W White 390W Amber |

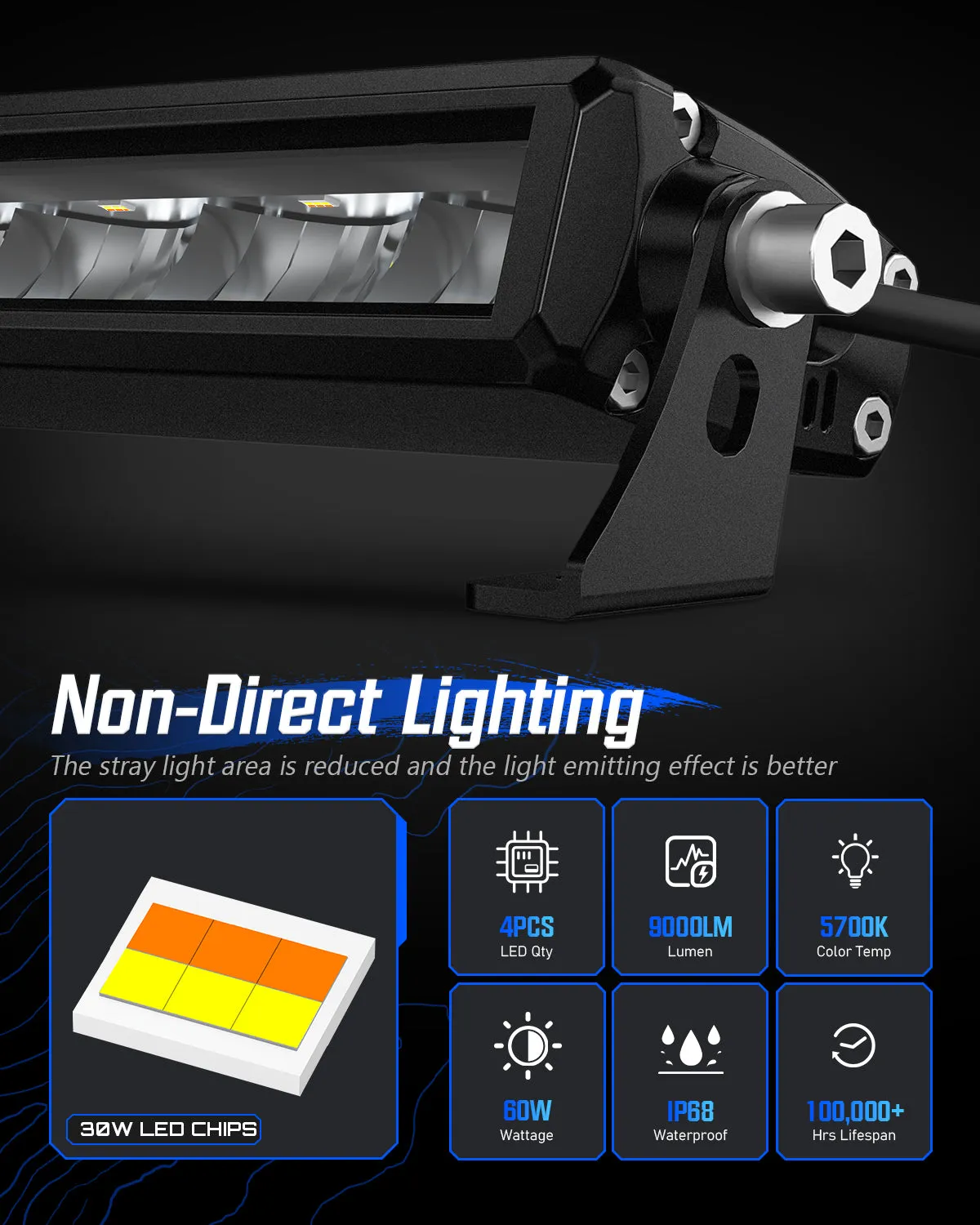

Specification:
● Light source type: dual beam/white light
● LED light source: composed of 30W 3570 LEDs
● Beam Mode: Driving
● Voltage Compatibility (DC): 9-36V
● Color temperature: 6000K cool white
● Waterproof grade: IP68
● Service life: 50,000 hours
● Working temperature: -40~85 degrees Celsius
● Material: black die-casting aluminum alloy shell
● Mounting bracket: die-cast aluminum alloy
● Wired socket: DT socket
100% Satisfaction Guarantee
√ 45 days return for quality problems
√ 5 years worry-free warranty
√ Free shipping in the US
√ 24/7 hours professional customer support team one to one
Feature:

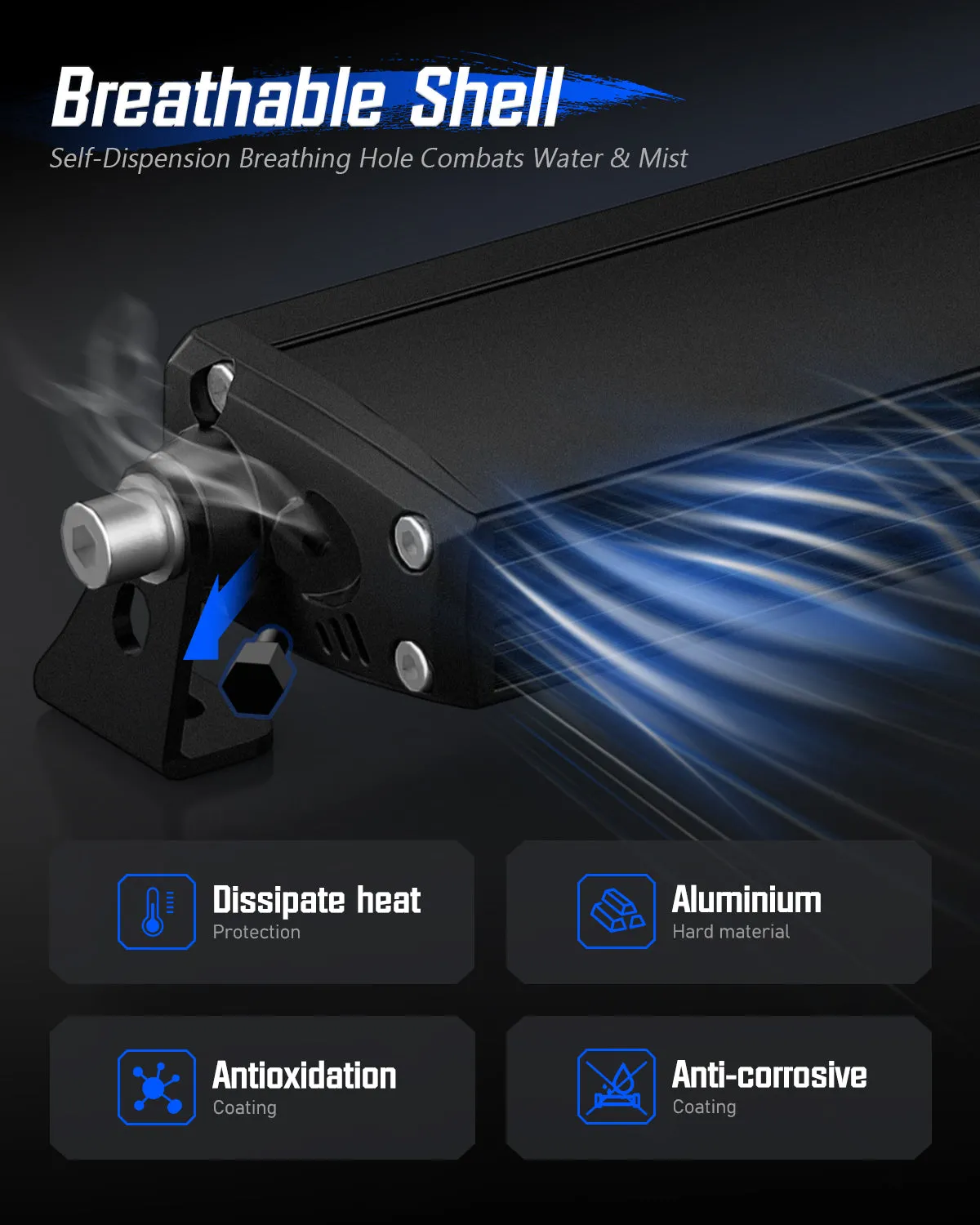

Black extruded aluminum profile, high light transmittance PC lens, 360° rotating metal side bracket;
IP68 waterproof and dustproof, sturdy and durable, can withstand any harsh environment, with a service life of about 50,000 hours
Widely applicable：
Off-road vehicles - ATVs, SUVs, trucks, forklifts, trains, boats;
Special vehicles - fire trucks, police cars, rescue vehicles, communication vehicles, military command vehicles, etc.;
Engineering vehicles - excavators, bulldozers, road rollers, bulldozers, cranes, mining vehicles, etc.
What will you get?
●LED light bar*1
●Wiring Harness*1 (118-inch wire harness, double control switch)

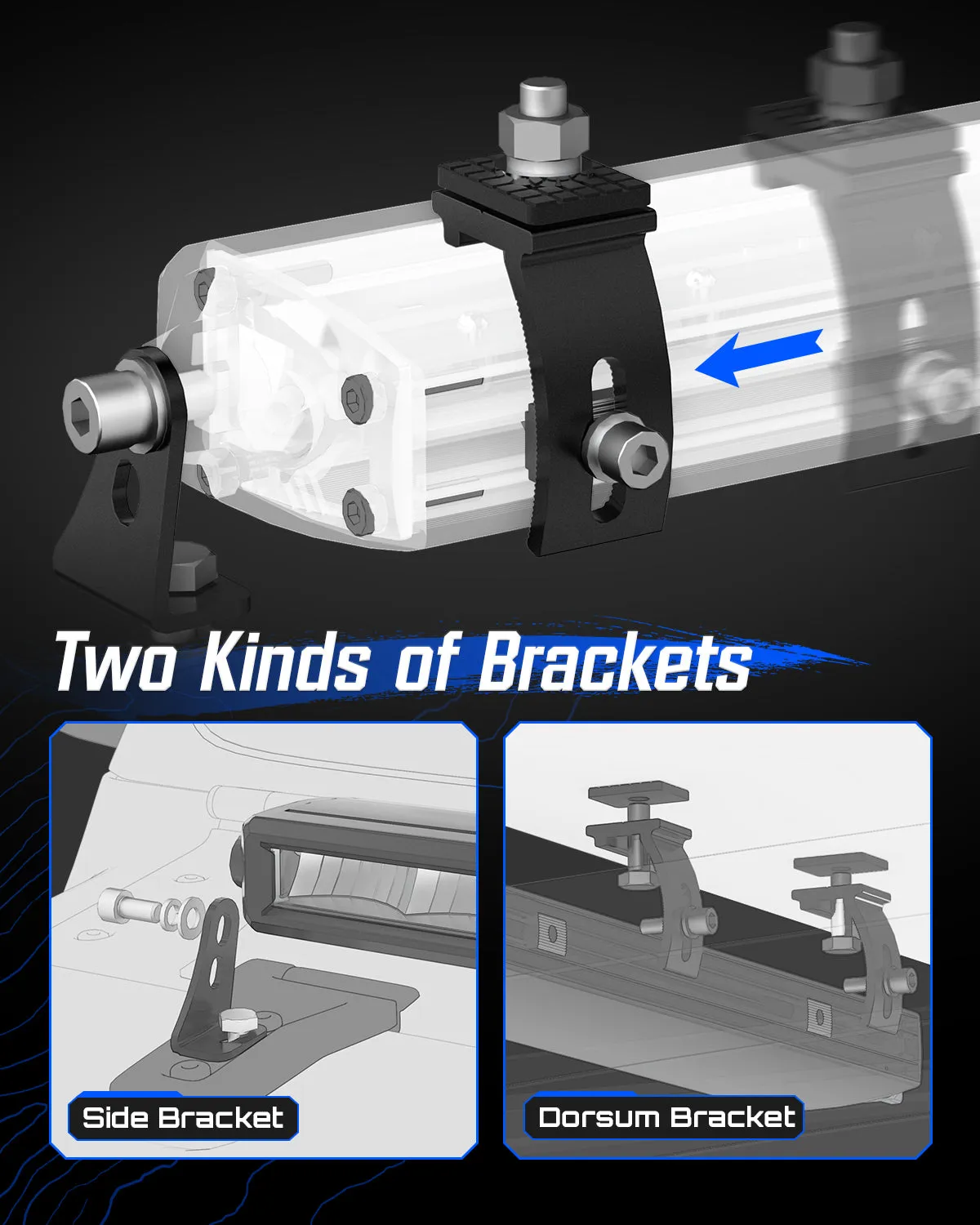

●Side bracket package (Hexagon socket screw * 2PCS; Flat washer*4PCS ;Spring pad*4PCS;Cylinder head hexagon socket screw*2PCS; Side bracket* 2PCS; Nut*2PCS; Hex wrench*1PC)
●Bottom bracket package (Hexagon socket screw*2PCS ;Nut*2PCS; Rear support; anti-slip mat*2PCS; Rear bracket* 2PCS; Anti-vibration rubber pad rubber*2PCS; Flat washer*2PCS; Spring washer*2PCS; Nut* 2PCS; Flat washer*2PCS; Spring washer*2PCS; Cylindrical head hexagon socket screw*2PCS; Allen wrench*1PC)
Installation Support
- Installation guides (Download online):
